High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas

High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas

نام تجاری: Flyon
شماره مدل: پرده تقسیم
مقدار تولیدی: 50 متر مربع
قیمت: $46-98/sqm
شرایط پرداخت: T/T ، Western Union ، L/C
توانایی عرضه: > = 50000 متر مربع در ماه
اطلاعات دقیق
محل منبع:
چین
گواهی:
SGS/GB-18586
مواد:
پارچه
رنگ:
درخواست مشتری
نرخ آتش:
GB-8624
مقاومت در برابر اشک:
GB/T 3917.3-2009
مزایا:
ضد آتش ، مقاومت در برابر اشک ، دوستانه محیطی ، قدرت بالا
سیستم کنترل:
سیستم الکتریکی
جزئیات بسته بندی:
جعبه چوبی
قابلیت ارائه:
> = 50000 متر مربع در ماه
برجسته کردن:

High Strength Dividing Curtain,Fireproof Divider Curtain,Electric Control System Partition Curtain

,

Fireproof Divider Curtain

,

Electric Control System Partition Curtain

توضیحات محصول
High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas
Special discounts available for new and existing customers. Contact us for specific pricing.
Single Curtain System Specifications
Product Name Dividing Curtain Total Hanging Weight ≤ 2.5 kg/m
Maximum Height 12m Hanging Spacing ≤ 3m
Maximum Width 36m Maximum Bearing Capacity (per lifting point) ≤ 80kg
Maximum Area 300m² Maximum Hanging Weight ≤ 750kg
Color Choices
High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 0 High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 1
Installation Safety Requirements
  • A safety gap of at least 50 cm should be reserved between this partition curtain system and the adjacent partition curtain or wall
  • A safety clearance of at least 15 cm should be left on the side without motor drive system
  • At least 5cm ground clearance shall be reserved between the bottom of the partition curtain and the ground
Product Advantages
  • Double layer curtain with high quality PVC for superior sound absorption
  • Integrated netting sections allow natural light transmission
  • Complete system includes all necessary materials and segments with aluminum truss carrier structure
  • User-friendly operation with multiple configuration options available
  • Complete system provided with tested and certified components
Electric and Control System
High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer, up-and-down position brake limiter, push-button limit switch, automatic reset and thermal overload protection system integrated in the middle winding drum. Ensures stable and reliable operation.
Packing and Shipment
High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 2

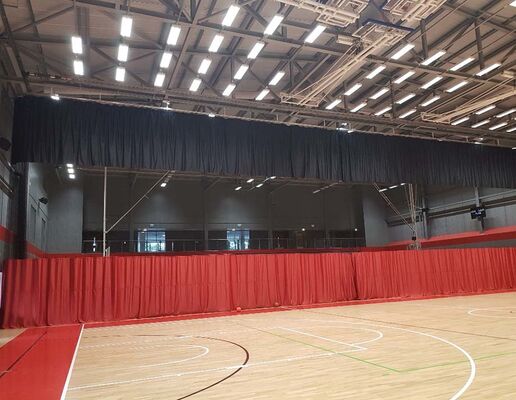

Project Presentation
High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 3 High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 4 High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 5
